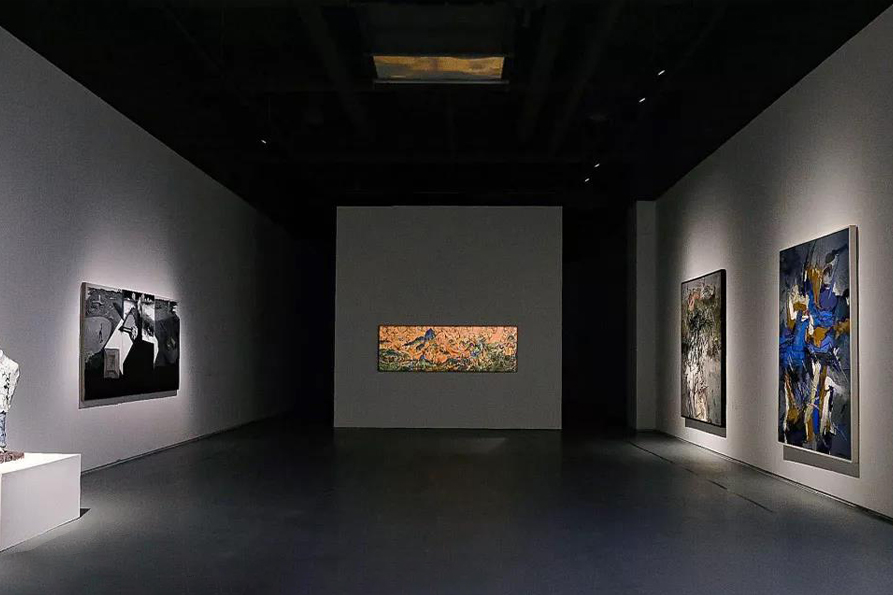

TLC series are professional lighting fixtures for museums and art galleries, which can adjust the lighting range according to the picture size so that only the paintings can be seen but not the wall in the dark environment to show a strong artistic expression.

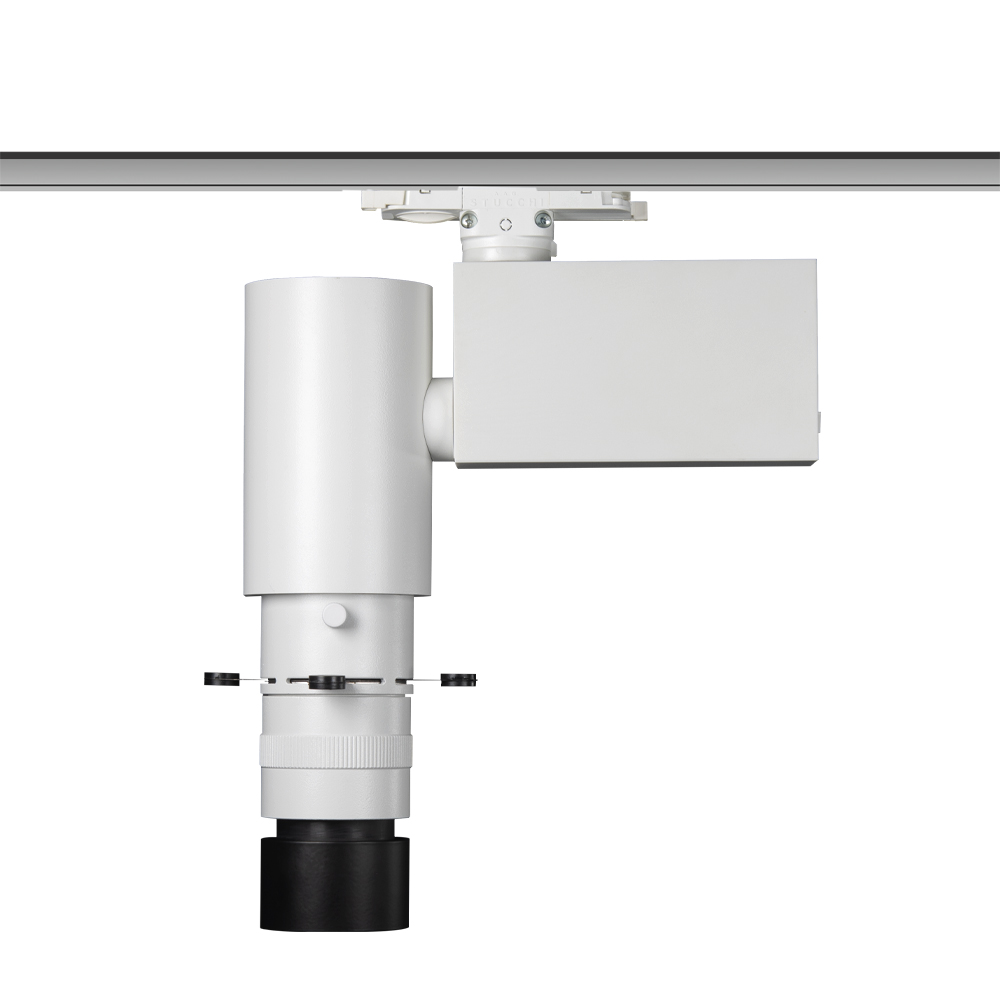

Item Number: TLC1-C20
Power Consumption: 20W
LED: 16.2W
Luminous Flux: 789lm
CRI: Ra>90/Ra>95
Color Temperature: 3000K/3500K/4000K
Beam Angle: 32°
Dimming: 0-100%
Light Beam Framing
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through 240°
Dimmable
Dimming Mode
CRI>90 CRI>95
UGR<19
Efficient Optical Technology
Branded High Power LEDs
No Flickering
Housing Colors
Net Weight
IP20
CE
RoHS

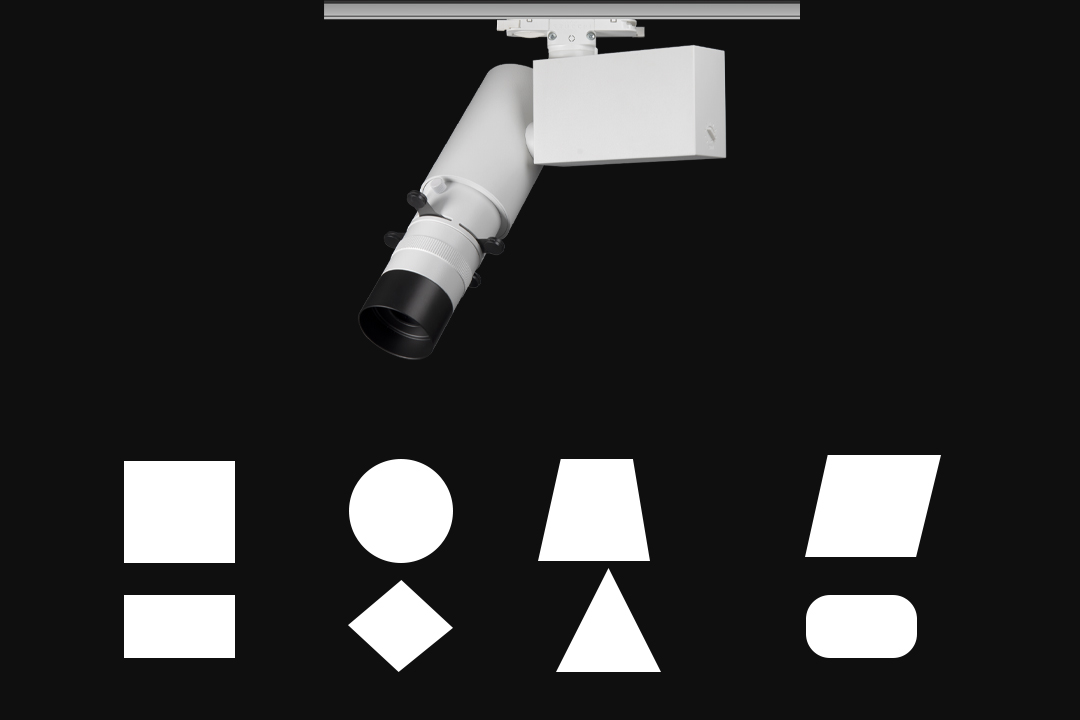

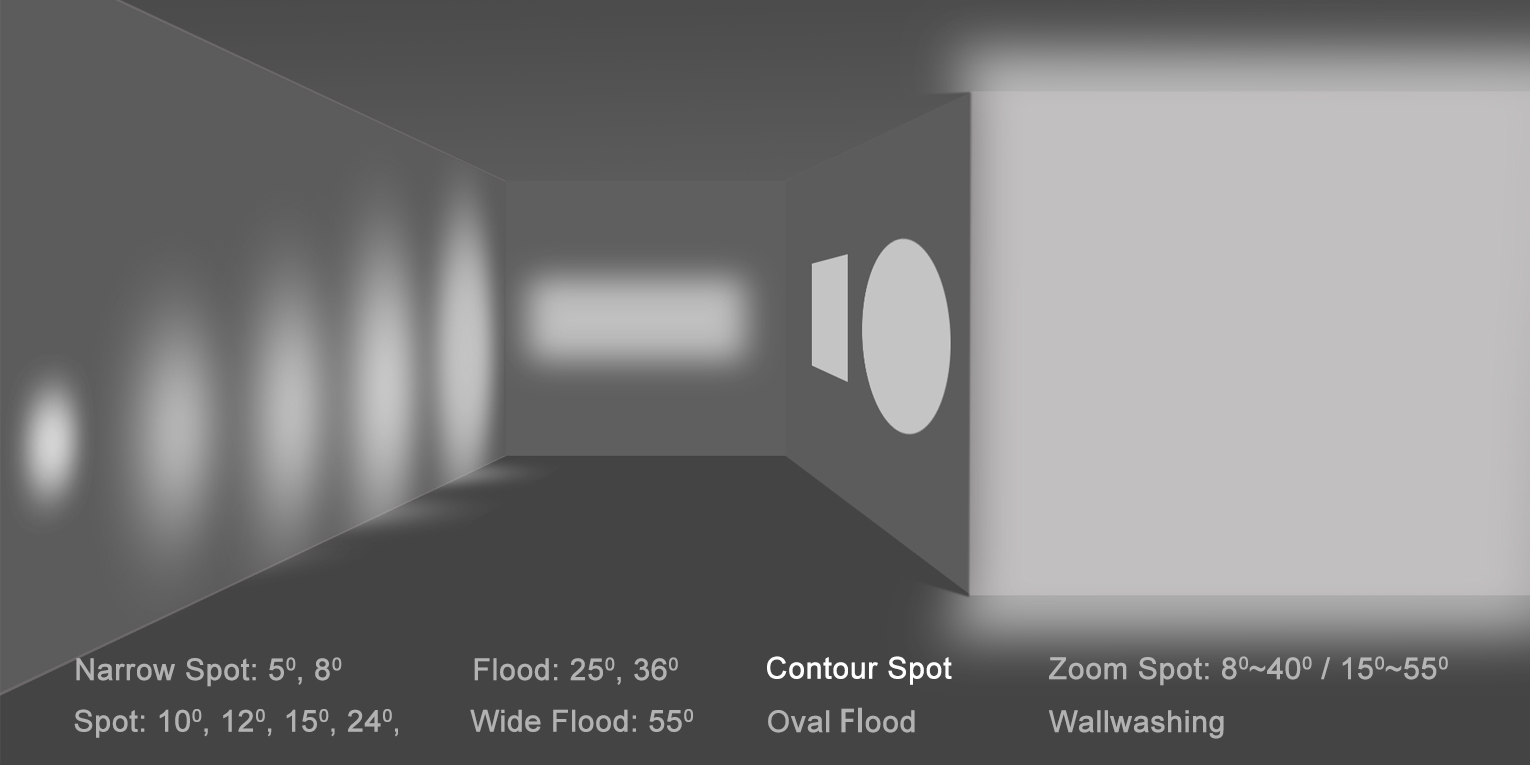

Contour spotlight could deliver sharply defined light beams in different shapes. Move the four diaphragm sheets behind the lens to enable the spotlight to carate light spots in different sizes and shapes. The sharpness of the light spot could be adjusted by turning the lens.

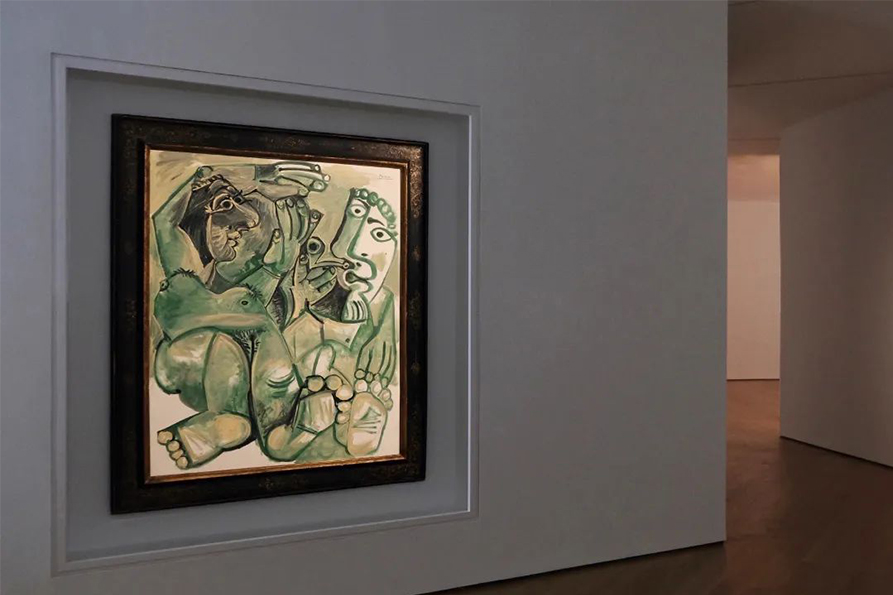

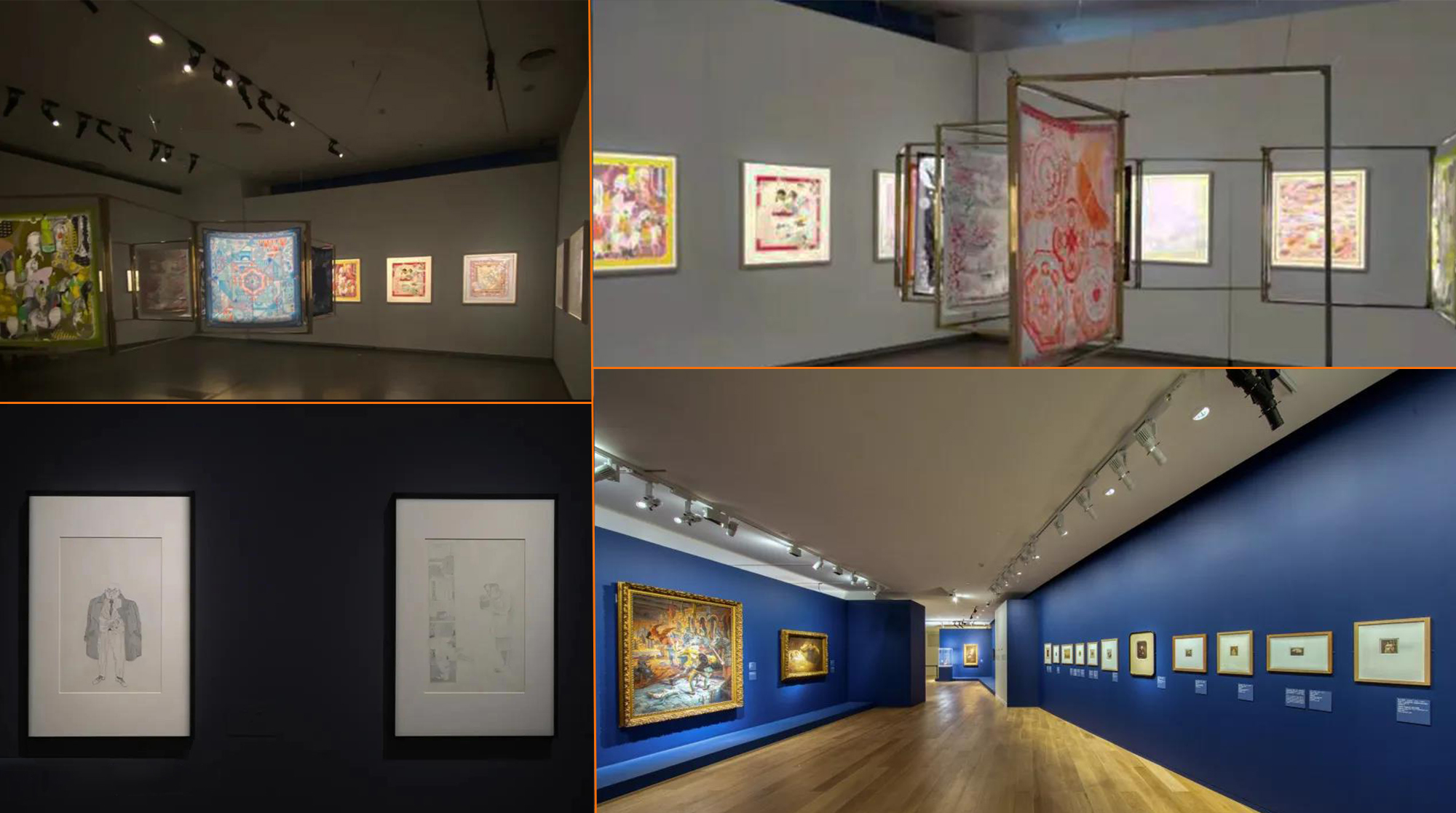

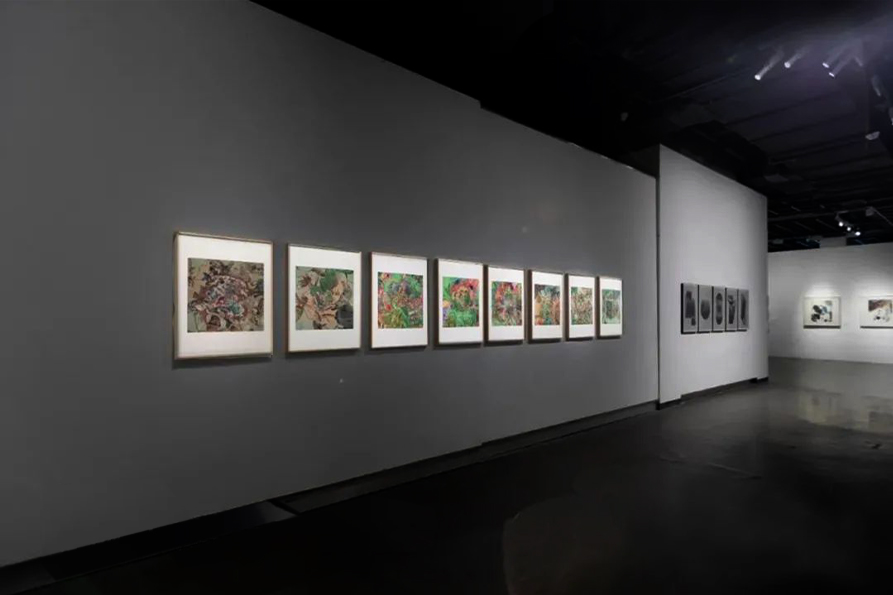

Carefully pull and push the four diaphragm sheets on the spotlight lens unit to illuminate the picture itself and leave the surroundings in darkness. The picture will appear to light from within.

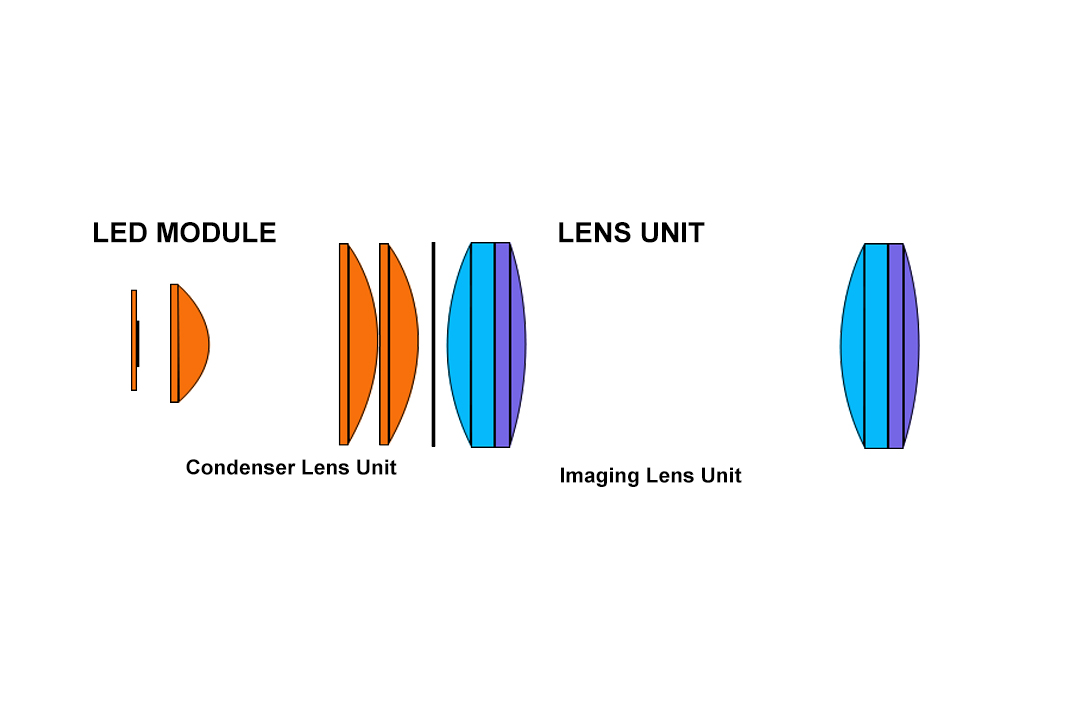

The lens unit consists of 6-9 pieces of high-definition coated optical lenses. The lens unit features high luminous efficiency, superior uniformity, low distortion, Wide linear zoom range, sharply defined light beam, etc.

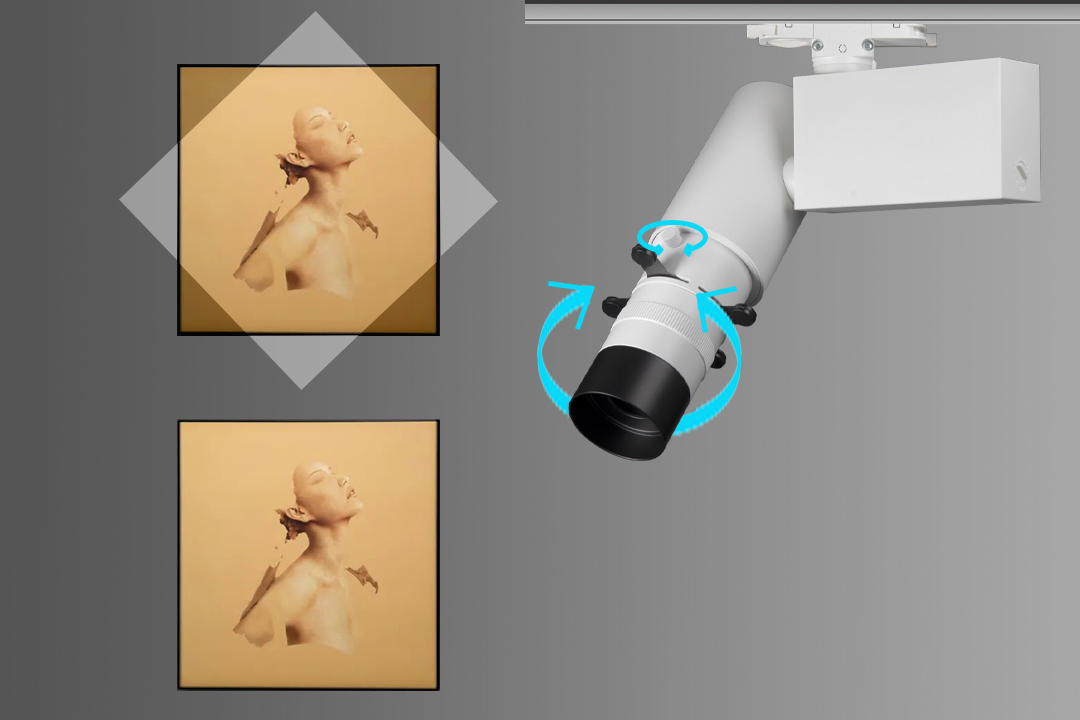

Loosen the screw behind the diaphragm sheet and turn the lens unit to achieve a 360° rotation of the light beam. It helps adjust the light spot to illuminate the picture. Tighten the screw again after the adjustment is done.

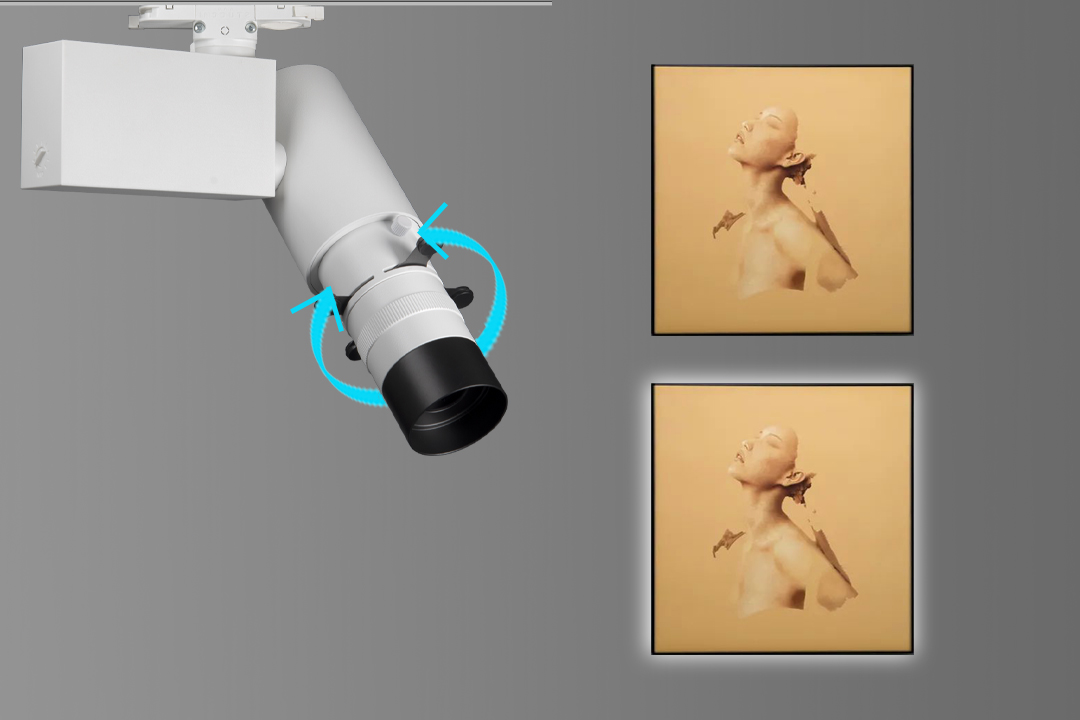

Turning the focusing ring on the lens unit could change the sharpness of the light beam and bring different effects on the pictures.
While the direct beam tells the boundary and defines the distinct shape of the paintings/exhibits, the diffused beam reduces shadows and enhances long-term visual comfort.

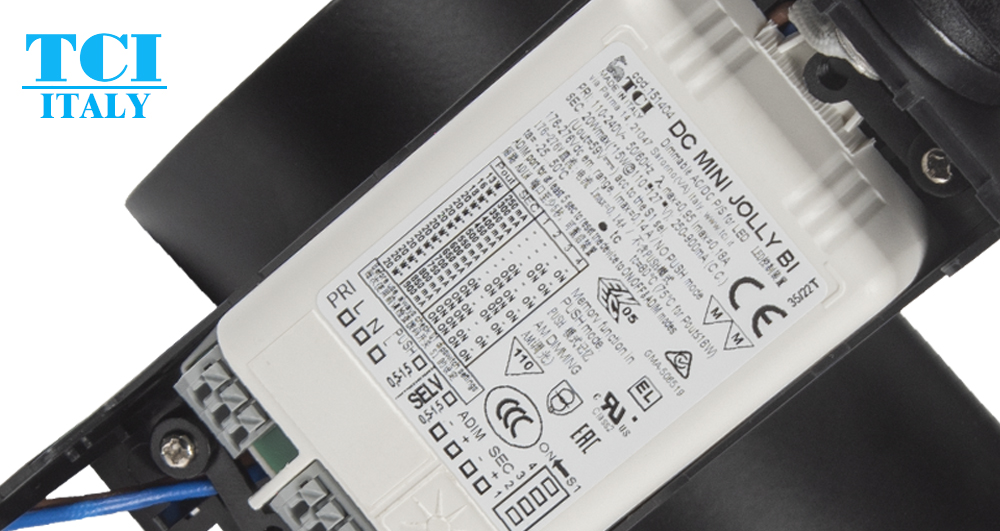

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.
The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

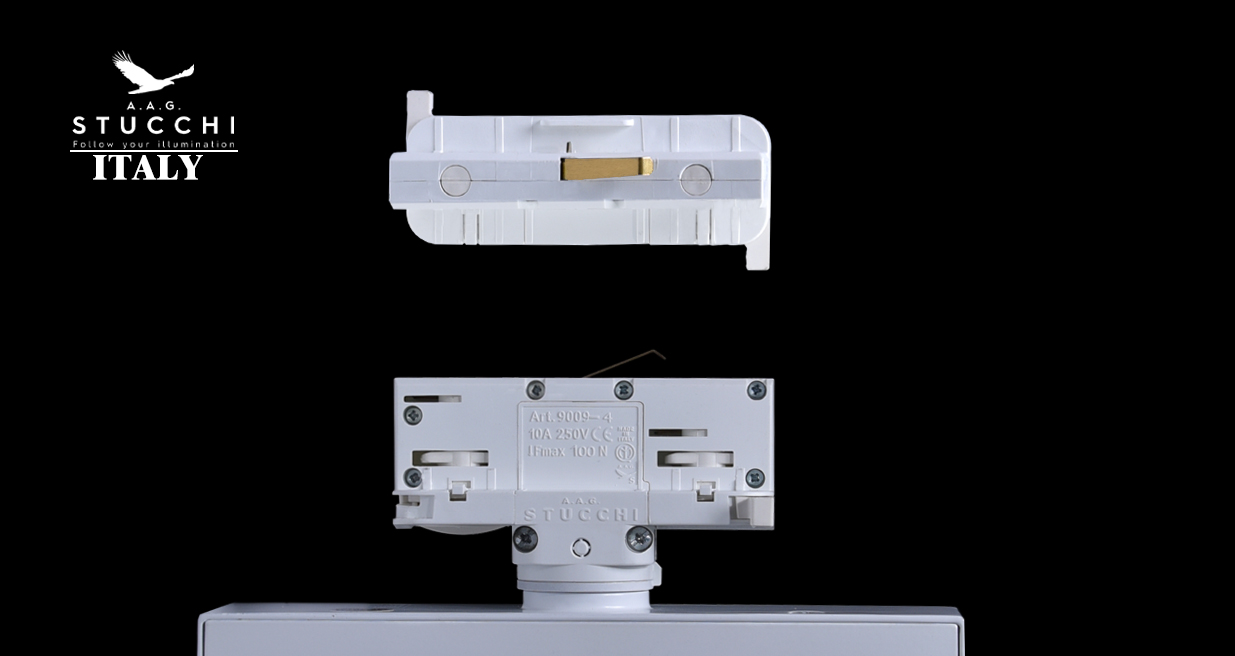

Track Adapter: Stucchi
Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs

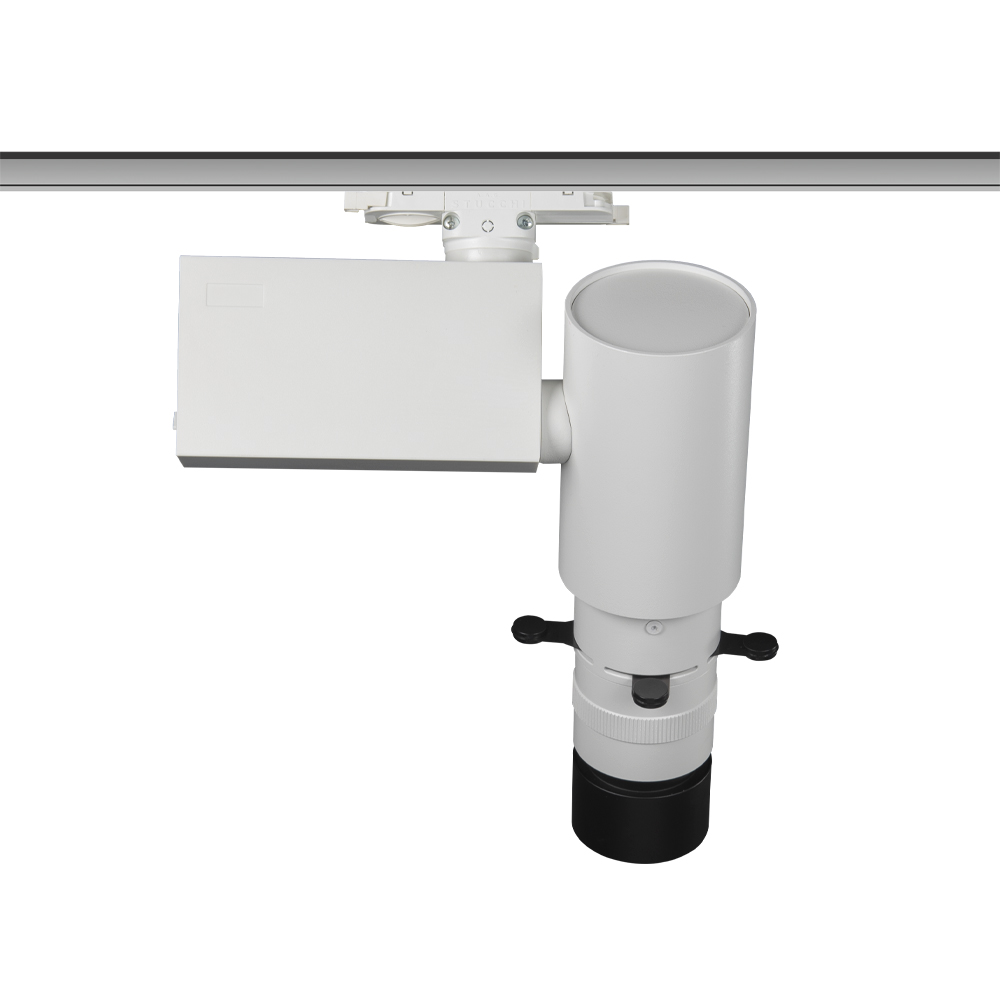

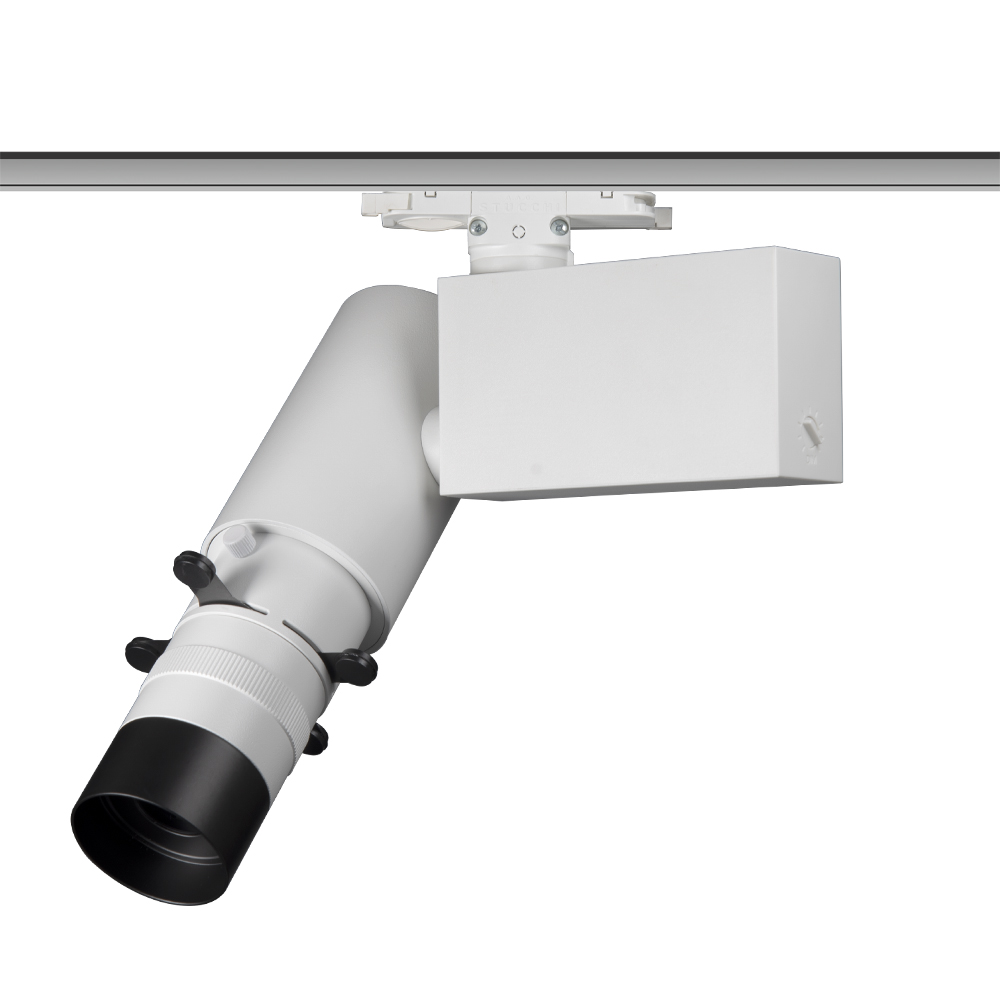

Track Contour Spotlight
| Model | TLC1-C20 |
| Input Voltage | 100~240V AC |
| Power | 20W |
| LED Power | 16.2W |
| CRI | Ra>90 / Ra>95 |
| Color Temperature | 3000K/3500K/4000K |
| Power Tactor | >0.9 |
| Dimming Range | 0~100% |
| Beam Angle | 320 |
| Material | Aluminum, powder-coated |
| Housing Color | White / Black |

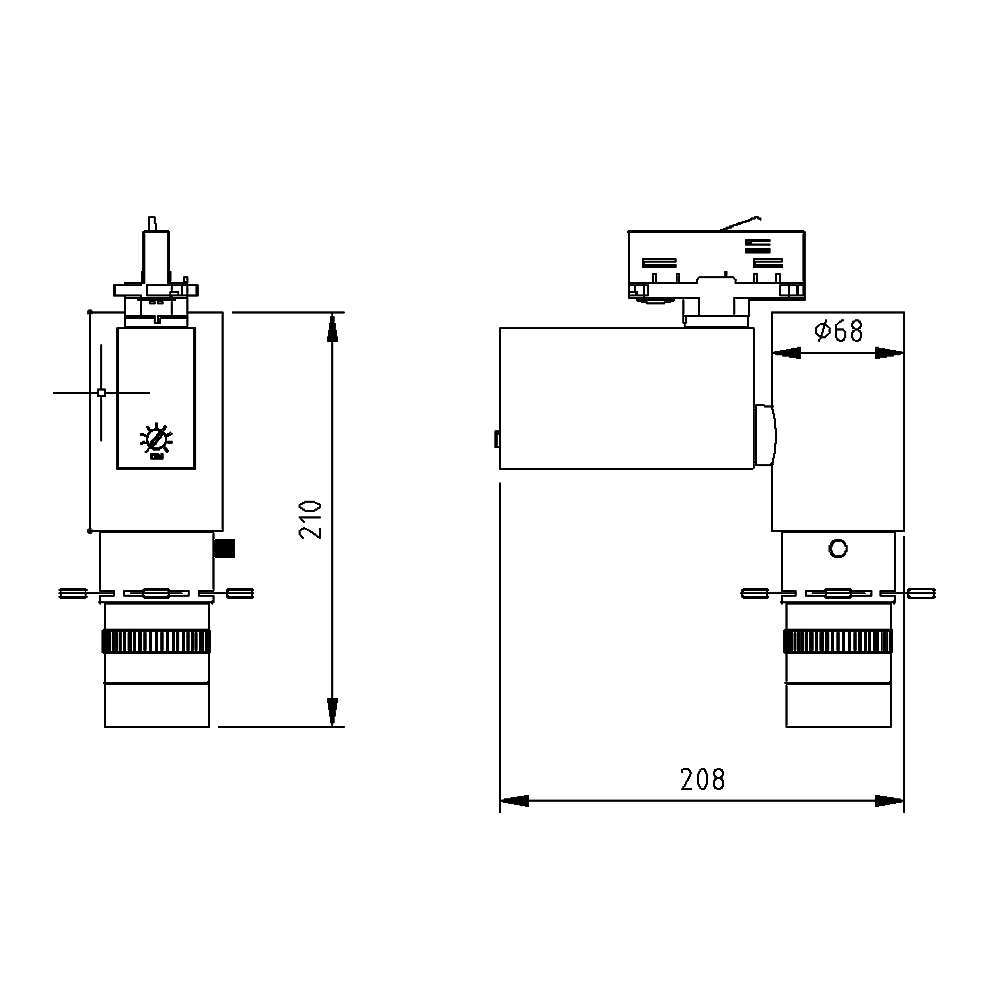

| Dimension | L208 X W68 X H210 mm |
| Net Weight | 1.1kgs |
