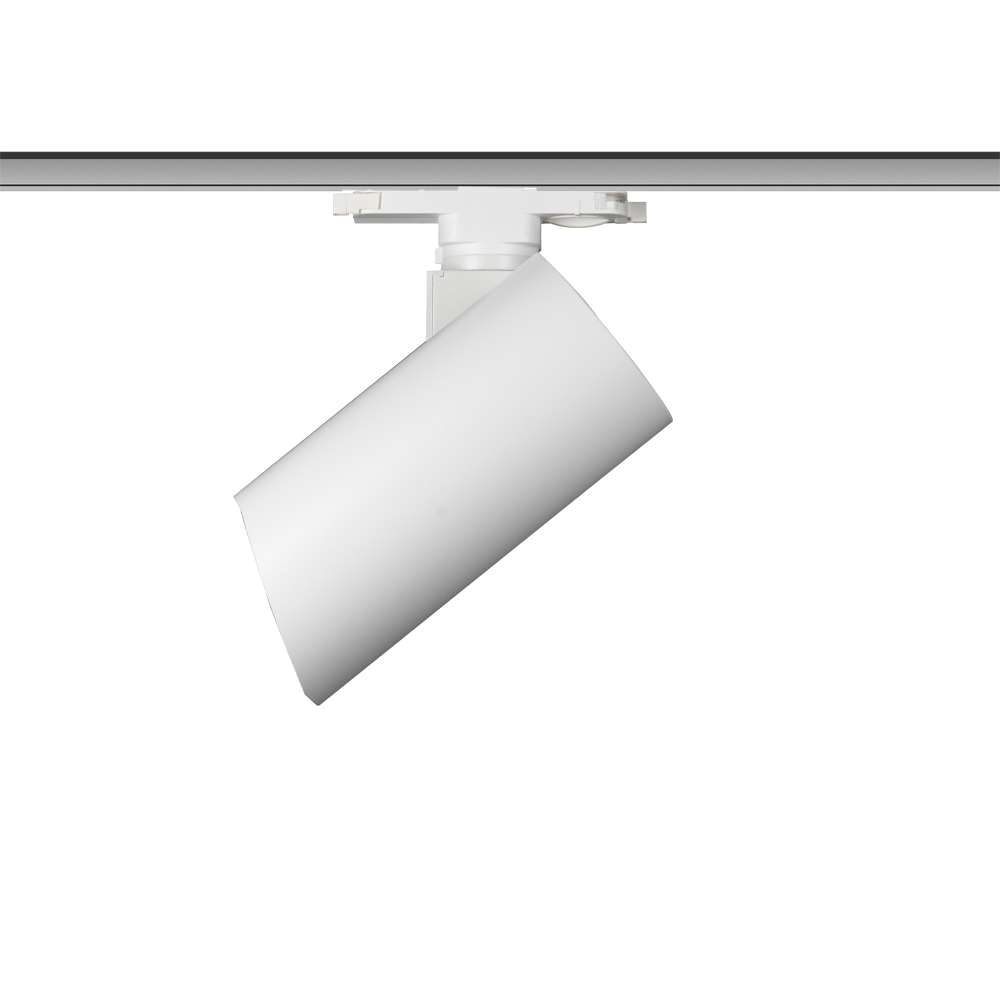

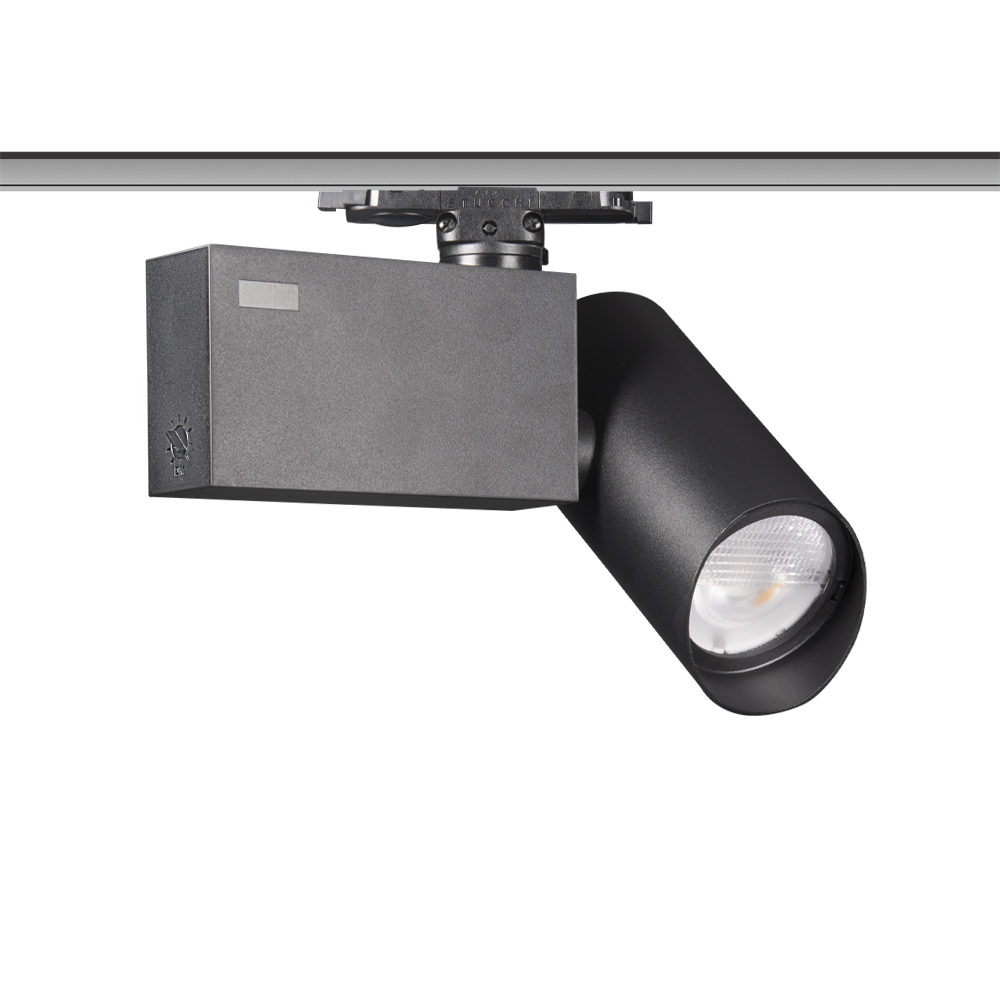

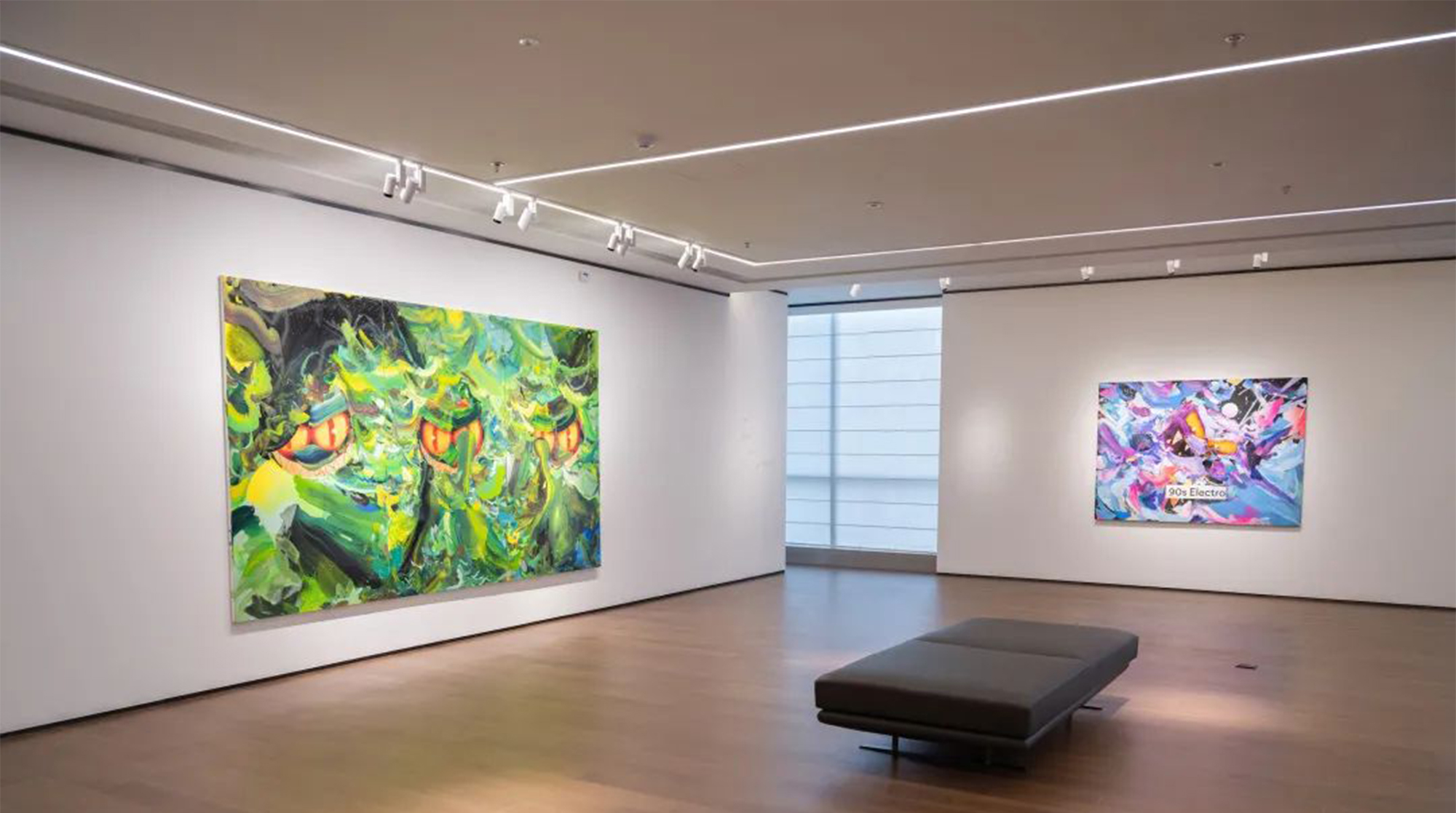

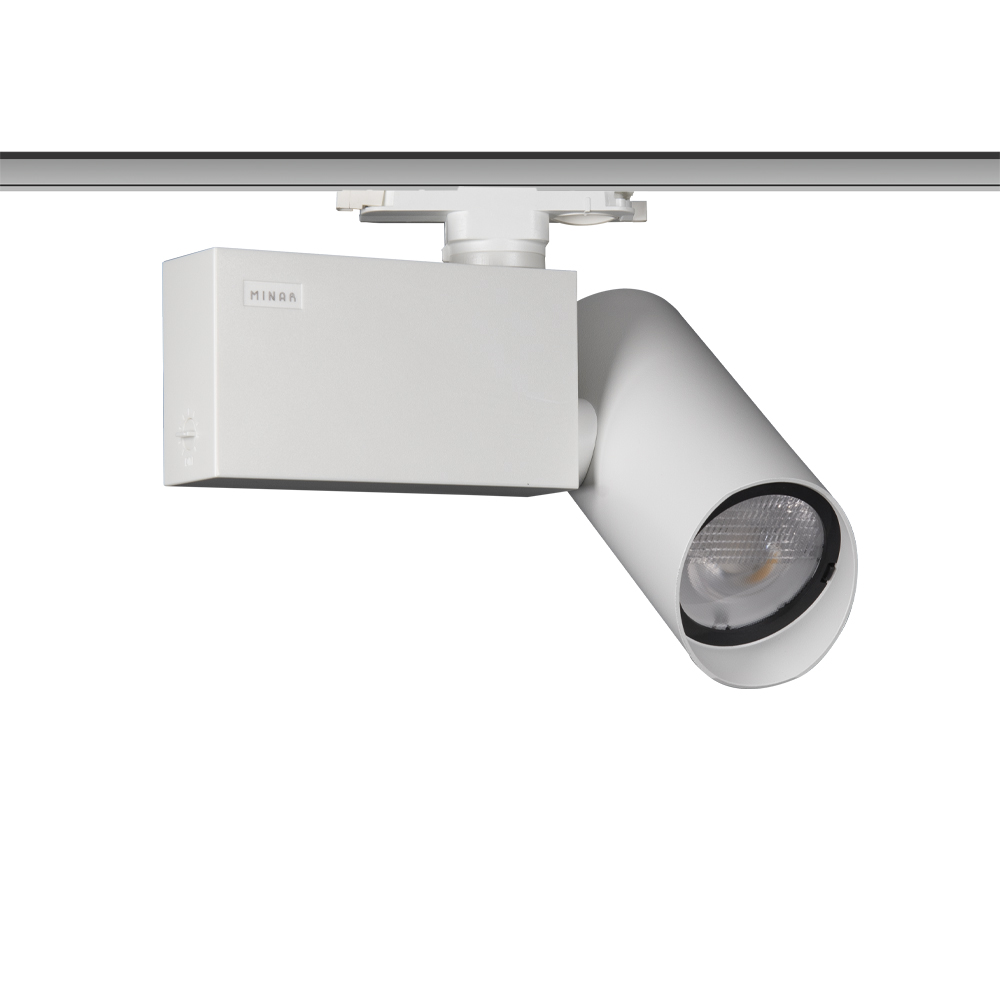

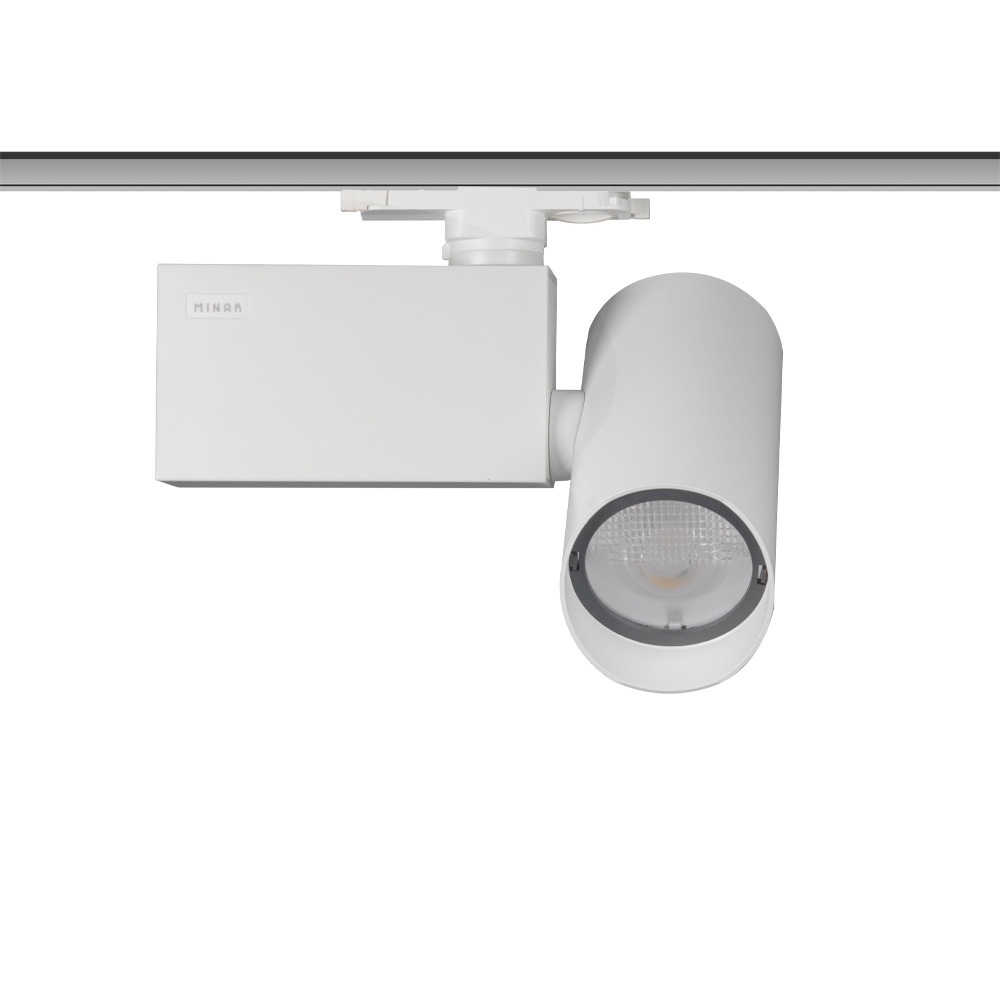

TLW series are professional museum gallery lighting fixtures. They are polarized designed to evenly light a wall below 10 meters height, and are suitable for large paintings display.
Item Number: TLW2-C20
Power Consumption: 20W
LED: 16.2W

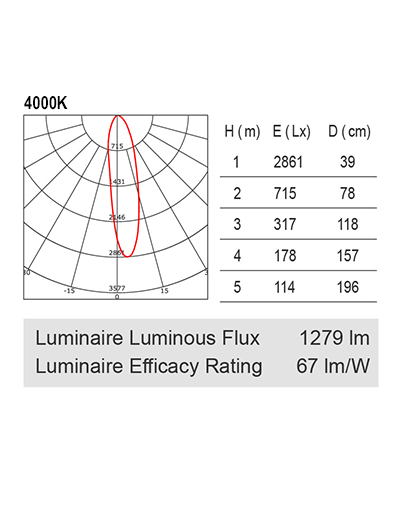

Luminous Flux: 1279lm
CRI: Ra>90/Ra>95
Color Temperature: 3000K/3500K/4000K

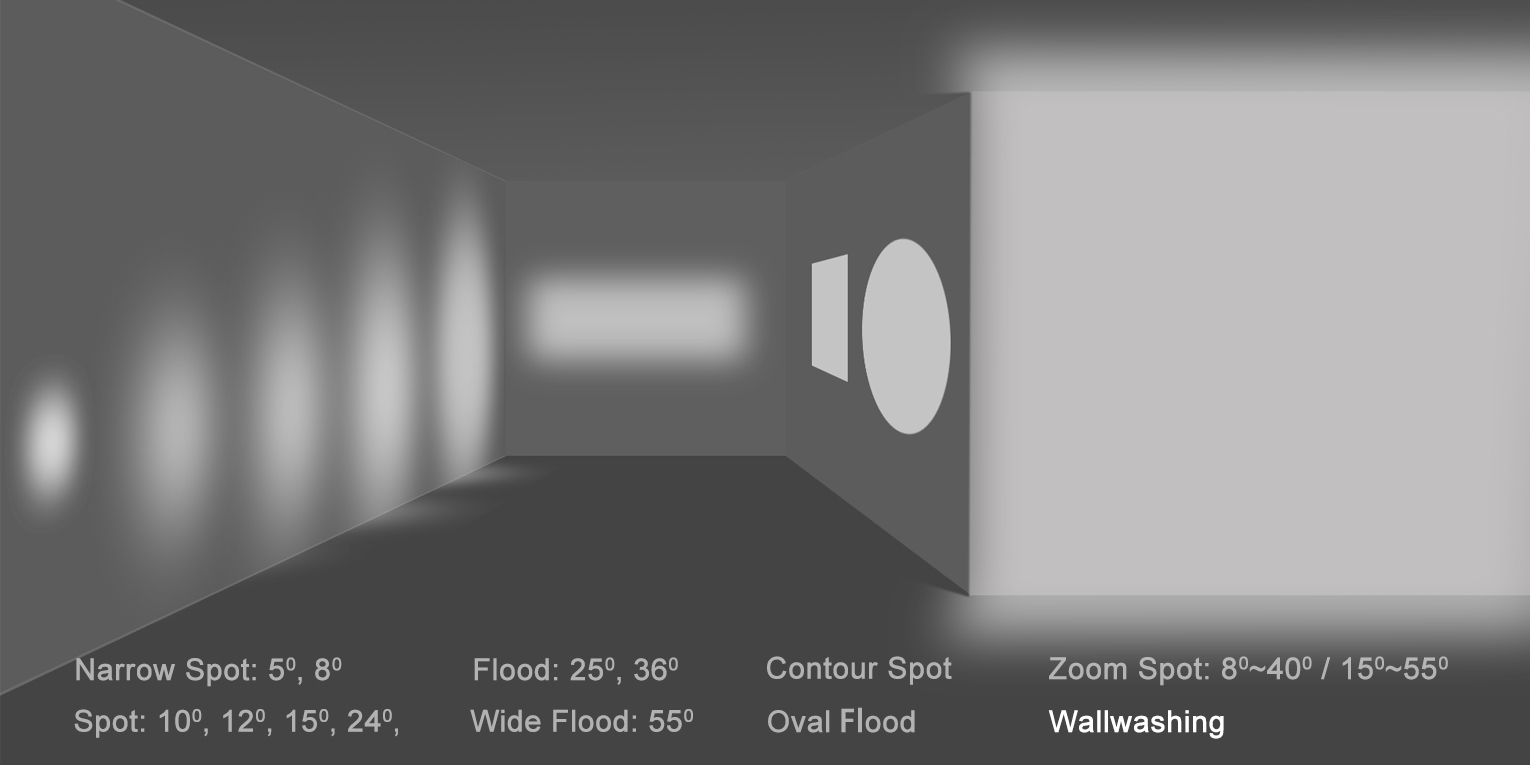

Beam Angle: Washwashing
Dimming: 0-100%
Wall Washing
1 Circuit or 3 Circuits Track
Horizontal Rotation
Pivotable through 325°
Dimmable
Dimming Mode
CRI>90 CRI>95
UGR<19
Efficient Optical Technology
Branded High Power LEDs
No Flickering
Housing Colors
Net Weight
IP20
CE
RoHS

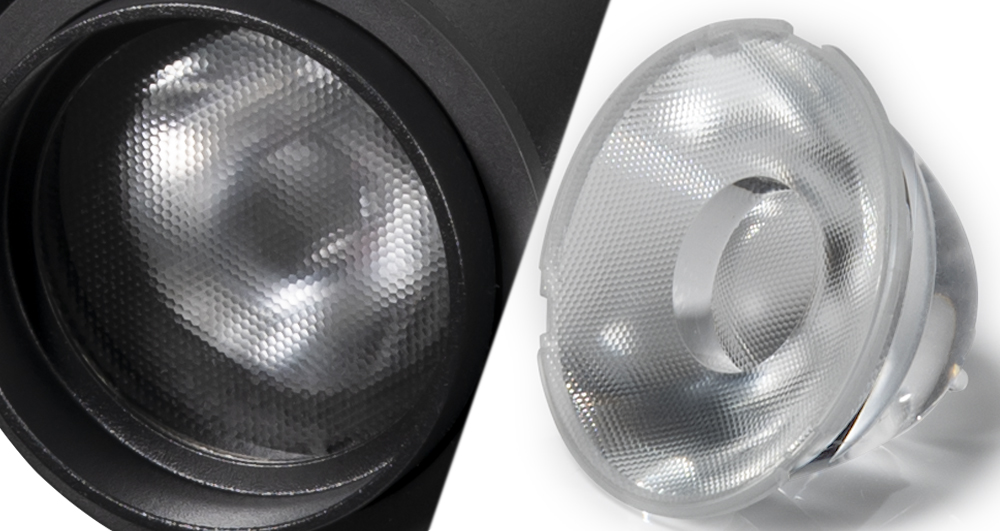

The unique design of the lens and housing enables the wall washer to provide a uniform light beam for wall washing. The light beam features a soft receding halo and non-overexposure in the center spot, suitable for low space (below 4 meters) use.

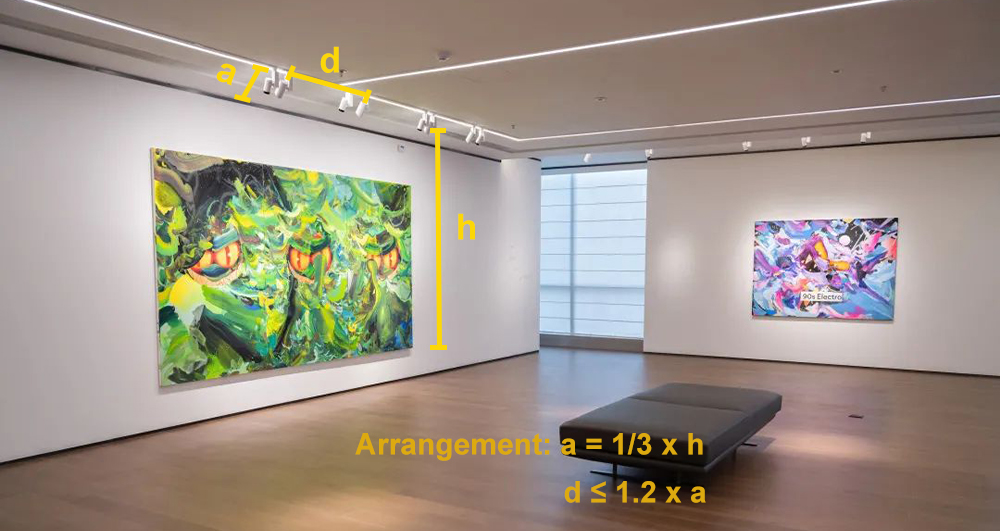

The unique design gives the wall washer an ultra-wide wall-washing beam angle and high-efficient luminous flux. Wall washing height is up to 4 meters with a uniform illumination of the wall.

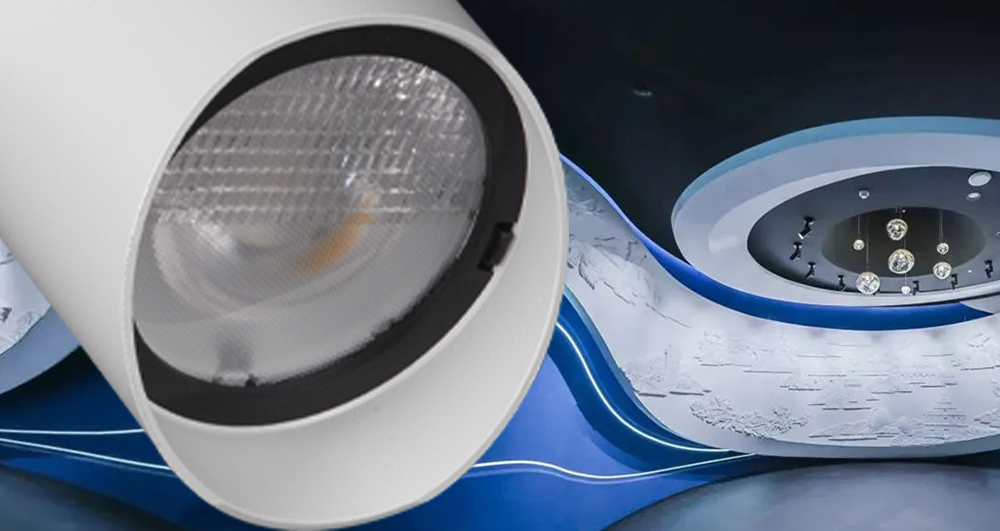

CRI could be higher than 95 to reflect the original vivid color of the exhibits. The light is soft but extremely consistent and penetrating to reproduce the saturated colors.
The spotlight is excellent for all kinds of colors, presenting you with richer, more natural colors and sharper details.

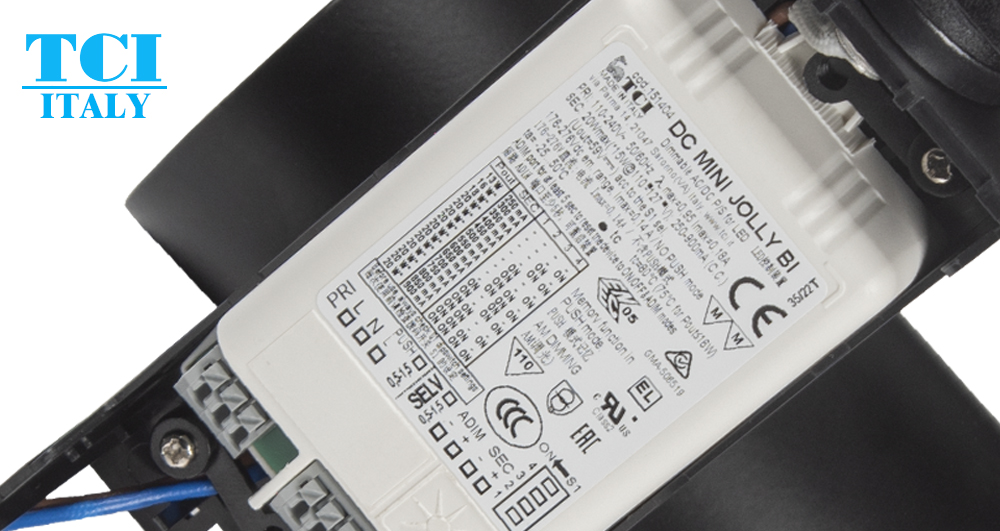

Minar spotlights apply the original TCI driver to ensure superior performance and stability for museum lighting.

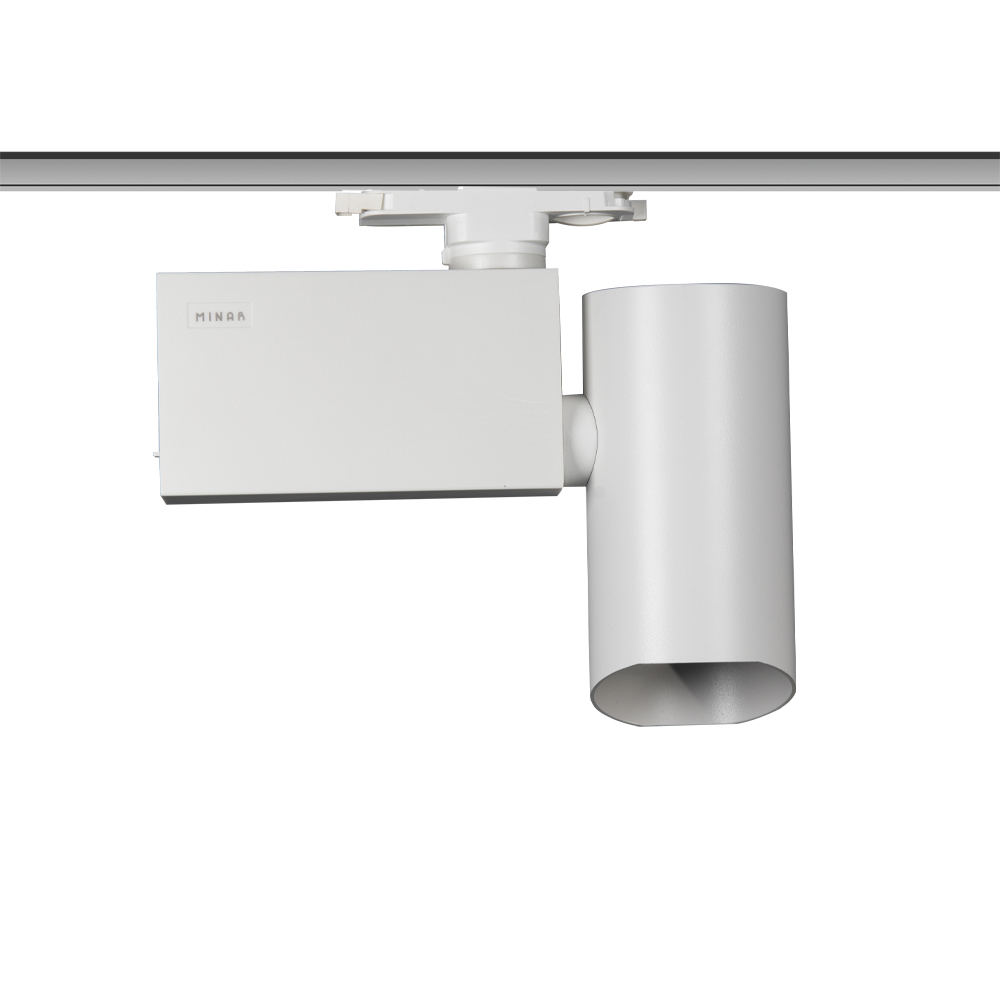

The driver and LED modules are placed in different cabinets to ensure their heat dissipation does not interfere with each other. This structure ensures the stability of the driver, thus further improving the overall luminous efficiency and extending the overall life of the spotlight.

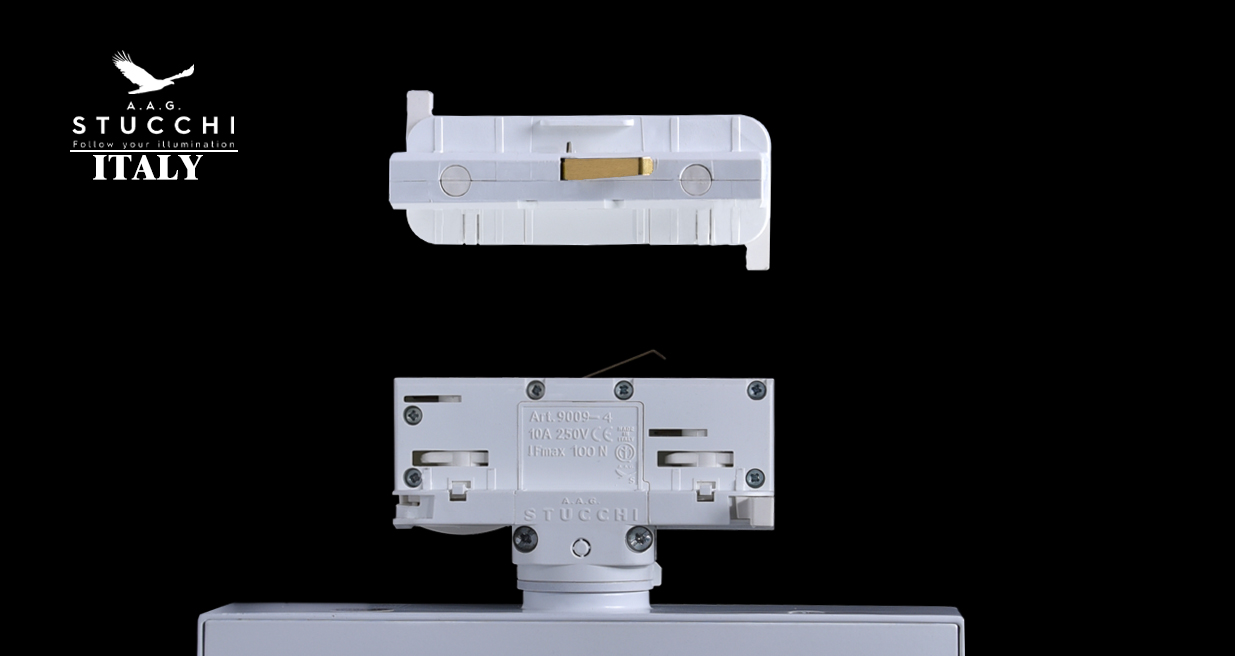

Original Stucchi track adapter:
1. Two pieces of the lever of the cam at each side of the adapter for better lockup of the spotlight on the track.
2. Maximum bearing: 5.0kgs
Track Wall Washer
| Model | TLW2-C20 |
| Input Voltage | 100~240V AC |
| Power | 20W |
| LED Power | 16.2W |
| CRI | RA>90 / RA>95 |
| Color Temperature | 3000K/3500K/4000K |
| Power Factor | >0.9 |
| Dimming Range | 0~100% |
| Material | Aluminum, powder-coated |
| Housing Color | White / Black |

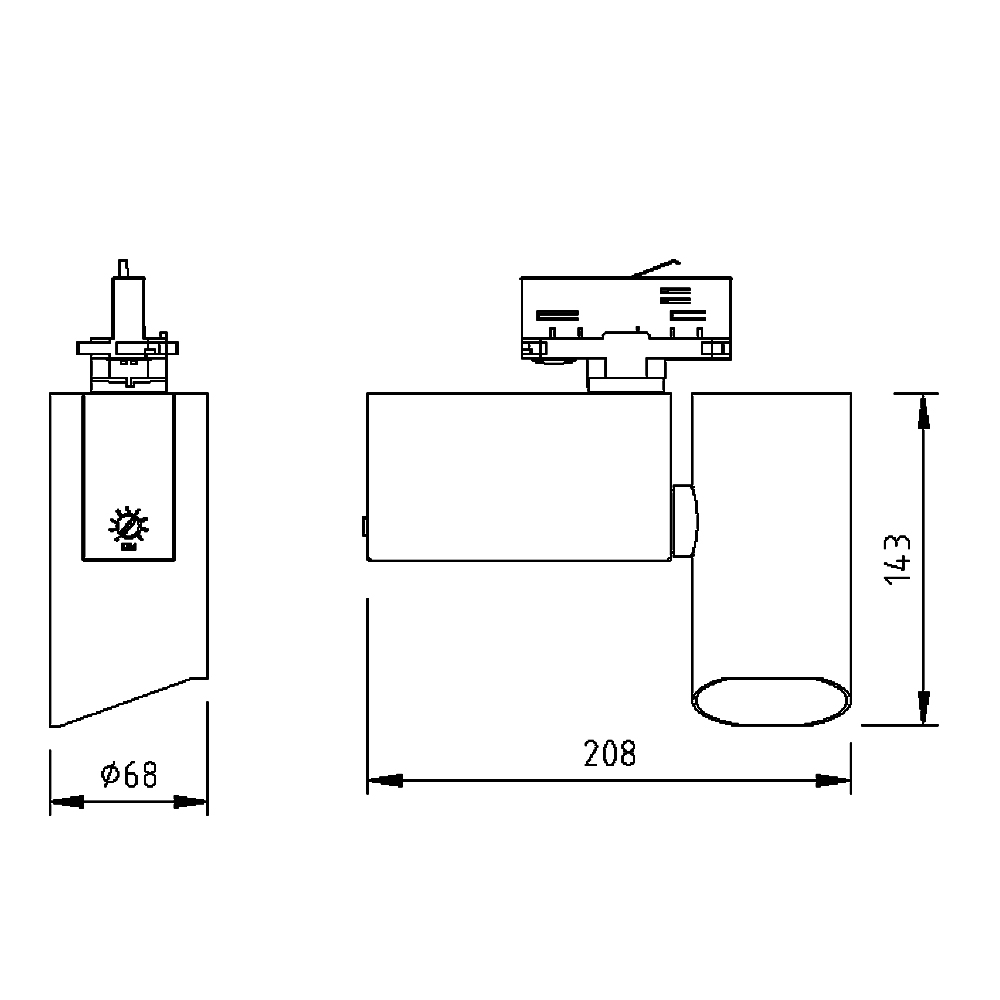

| Dimension | L208 X W68 X H143 mm |
| Net Weight | 0.7kgs |
